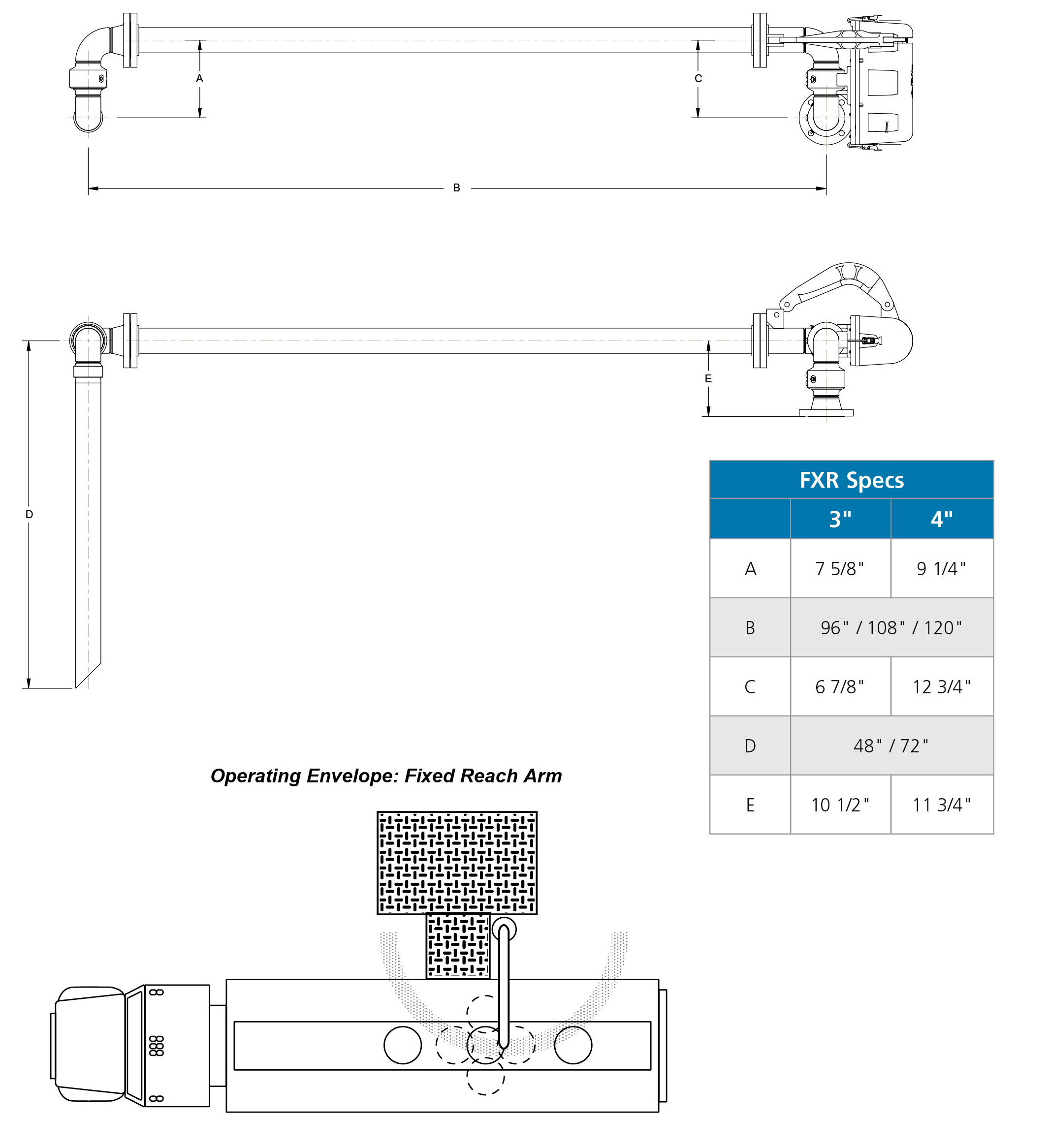

Fixed Reach (FXR) Top Loading Arm

This simple arm incorporates only three swivel planes of rotation and is designed for use in top-loading installations where the vehicle is located at a fixed distance from the riser pipe. The two swivel planes at the inlet permit both up-and-down and side-to-side movement of the assembly, and the third swivel plane allows the drop pipe to remain vertical.

The New StandardLine

StandardLine Loading Arms by OPW Engineered Systems raise the bar in quality and performance for the industry. Get OPW's best-in-class loading systems in pre-engineered sizes, materials and feed orientations with delivery in 4 weeks or less. All StandardLine Loading Arms feature:

  • Fast Delivery – 20 Days or less!
  • Menu of Options to Customize Your Arm
  • Included Freight in the Continental US and Canada
  • Exclusive 3-Year Warranty

’20 Days or Less’ refers to 20 working days
