TB600D LPG Nozzle

Reliable, safe, lightweight and user-friendly, OPW’s new TB600 nozzle draws on 20 years of experience setting the global standard for LPG nozzle durability.

Key Benefits

User friendly, convenient one-hand operation
The lever force needed for actuation is the lowest on the market
The lightest DISH nozzle on the market
The new claw design avoids misaligned connection
High operational safety when fuelling
ATEX cat.1 pending

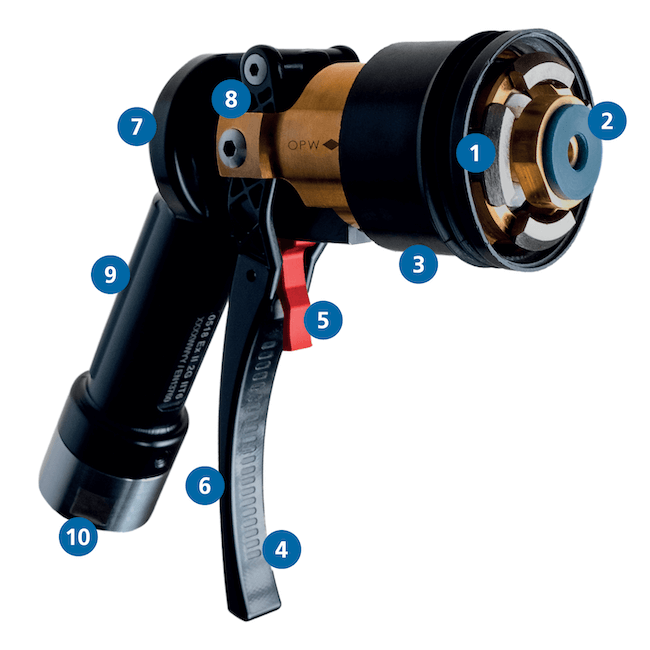

Key Features

Claws: The new design of the four large claws prevents misaligned connections to the receptacles. Gas will not flow until a proper connection has been established.
Front Seal: The extremely durable newly designed seal will not memorise the shape of contact surfaces (and is easily replaceable).
Connector Sleeve: The brass construction will not show scratches, even after many refuelling cycles, and the connector sleeves are made of anodised aluminium (natural, blue, black colours are available on request).
Lever: Made of a composite compound to protect the user’s fingers against the cold, the lever is extremely light and the force needed for actuation is the lowest on the market. Levers made of aluminium (black or natural colours) are also available upon request.
Release button: Made of a composite compound to allow simple one hand operation.
Magnets: Round magnets integrated into lever.
Body: Made of black anodised aluminium (natural colour available upon request).
Piston: Made of stainless steel for improved durability.
Plastic Insert: Protecting hands against the cold.
Swivel: Stainless steel inlet 1” BSPP. Other inlet threads available upon request.

Materials

Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: brass, stainless steel, anodized aluminum

Technical Specifications

PN: 360 psi (25 bar)
LPG Discharge on Disconnect: < 1 cm³ of liquid LPG
Weight: 2.64 lbs. (1.2 kg)
Locking Release: Trigger on lever
Coupling Style: DISH (Italian Claw Coupling)
Temperature Range: -13° F to 158° F (-25° C to 70° C)

Downloads

TB600 LPG Nozzle Datasheet
