SiteSentinel® Integra 100™ Console

Provides complete tank monitoring, inventory management and environmental-compliance testing through the incorporation of the latest computer technology, which allows users to view data remotely from anywhere in the world.

The SiteSentinel® Integra 100™ has been designed to lower installation costs by reducing the number of wires to the probes and sensors that are connected to its internal I.S. module. In addition, all devices are automatically detected and configured by using the touch-screen interface, making it one of the easiest ATG systems in the industry to install, configure and use.

The SiteSentinel® Integra 100™ console has been designed to reliably provide connectivity now and in the future. Available ports include: Ethernet, USB and RS-232 and modem. It is also one of the easiest tank gauges to use, requiring the least amount of training and menu navigation to access critical data.

Request SiteSentinel Integra 100 training through OPW University

Click to view the Integra Savings Calculator

IMPORTANT: Integra and End of Life for Adobe Flash

As many of you are probably aware, Adobe Systems will officially stop distribution and support for Flash on December 31, 2020. To continue to be able to configure your Integra console remotely you will need to download a plugin from the Adobe website. See the instructions in the link below:

M2029-SWF Flash-Integra EOL

M2029-SWF-FRA Flash-Integra EOL-FRA

M2029-SWF-SPA Flash-Integra EOL-SPA

SiteSentinel Integra 100

Features & Benefits

SiteSentinel® Integra 100™ Features

Large color touch-screen display gives one-touch access to real-time inventory data, delivery status, alarm conditions, and leak-detection information – all accessible from a single cockpit view
Statistical Leak Detection (SLD) optional advanced leak-testing technology - provides continuous automatic in-tank leak-detection operation, with no need to schedule test times or shut down tanks
Programmable Automatic Leak Detection (ALD) performs daily, weekly, monthly, and annually required static leak tests when the system detects a quiet time
Integral 4-channel multi-drop I.S. module
Internal power supply works between 96-264 VAC, covering all global requirements
International user-friendly icons follow guidelines in MIL STD - 1472
Displays gross and net-corrected tank volume, product level, water level and temperature for individual tanks
Configurable to meet localized settings (Date/Time formats and Metric/English units)
Provides programmable correction factors for restrapping tanks (2,000 points)
Includes address book of contacts to whom the unit can send text messages, fax and/or emails on any alarms and events
Able to schedule reports to automatically run at specific times
Communicates with industry-standard, third-party POS protocol and display format commands
Compliance calendar accessible with a single touch
Non-volatile memory for event storage up to ten years
Optional external USB thermal printer
Available output module provides multi-purpose relays, which can be used for outputs such as overfill alarms, sensor alarms or STP positive shutdown
Optional density measurement sensor has the capability to monitor product quality
Optional tank overfill alarm
Downloadable and Flash upgradeable software for easy updates
Monitors up to 16 probes or 64 sensors, or a combination

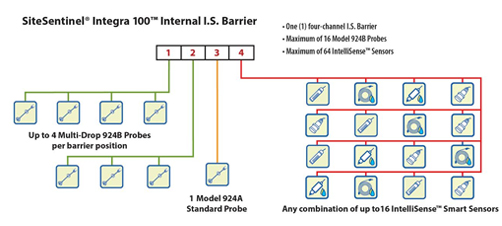

SiteSentinel® Integra 100™ Internal I.S. Barrier Diagram

Listings & Certifications

Technical Specifications

SiteSentinel® Integra 100™ Specifications

Dimensions: 14.5 inch W x 12 inch H x 4 inch D (37 cm x 30 cm x 10 cm)
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Humidity: Non-Condensing (Max 95%)
Typical Mounting Location: Indoor, Non-Hazardous Area
Power Requirements: 96-264 VAC, 50/60 Hz
Communication Ports: One (1) x Ethernet, Two (2) x RS-232, Two (2) x USB, Two (2) internal USB, One (1) x modem (optional)
Standard one (1) output and one (1) input internal relay connections

SiteSentinel® Integra 100™ Leak Test Certification

EPA Static Leak and Continuous Test Certified (ATGS & CITLDS Methods):

0.2 gph (0.76 L/hr) Statistical Leak Test 397,000 gallons (1,502,809 liters)/month throughput for single-tank, two-tank or three-tank manifold installations; 30,000-gallon (113,562 liters) combined maximum capacity
0.2 gph (0.76 L/hr) Static Leak Test
0.1 gph (0.38 L/hr) Static Leak Test
