Biodiesel Top Loading

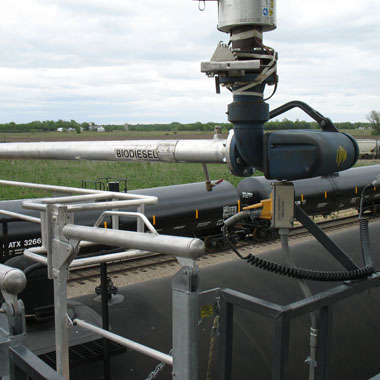

Bio-Diesel has been a growing trend for several years and has become a very common application. Typically loaded with either a Fixed Reach Style (Truck) or Unsupported Boom Style (Rail), but designs can vary based on your project needs. Also some debate about materials of construction with this product. In most instances, we have seen Carbon Steel specified, but have also provided all Stainless Steel equipment into this service product would typically require the use of stainless steel with food-grade sealing.

  • Typically a 3” or 4” Fixed Reach Loading Arm (Truck), Unsupported Boom Style (Rail)
  • Materials will vary, but typically Carbon Steel
    • Some aluminum outboard may also be specified
  • Multiple designs available to meet your application

Loading Arm Solutions

Some examples of loading arm solutions applied in this application*:

FileTypeSizeUploaded onDownload
BIO-3-96X48-DFRH-CS-ALPDF64.70 KB10 Nov, 2014 Download
BIO-3-66X78X60-DDFLH-CS-APDF80.03 KB10 Nov, 2014 Download
BIO-3-96X48-DFLH-CS-APDF65.81 KB10 Nov, 2014 Download
BIO-4-30X78X72-DUFLH-SST-APDF138.67 KB10 Nov, 2014 Download
BIO-4-36X90X72-DDFLH-SST-APDF140.09 KB10 Nov, 2014 Download
BIO-4-48X78X60-UDFRH-CS-APDF83.67 KB10 Nov, 2014 Download
BIO-4-36X90X72-DDFRH-SST-APDF143.73 KB10 Nov, 2014 Download
BIO-4-78X60-DFLH-CSPDF98.17 KB10 Nov, 2014 Download
BIO-4-78X60-DFRH-CSPDF95.56 KB10 Nov, 2014 Download
BIO-4-60X72X60-DDFRH-CSPDF141.16 KB10 Nov, 2014 Download
BIO-4X3-126X72-UFLH-CSPDF82.99 KB10 Nov, 2014 Download
BIO-4-84X72X60-UDFRH-SSTPDF105.94 KB10 Nov, 2014 Download


Photo Album

  • IMG_0506_tn
  • IMG_0503_tn
  • SSE-with-Arm_tn
  • IMG_0523_tn
  • IMG_0505_tn
  • IMG_0509_tn
  • DS-Canopy_tn
  • IMG_0510_tn
  • IMG_0504_tn
  • biodiesel

About Bio-Diesel

What is biodiesel?

Biodiesel is the name of a clean burning alternative fuel, produced from domestic, renewable resources. Biodiesel contains no petroleum, but it can be blended at any level with petroleum diesel to create a biodiesel blend. It can be used in compression-ignition (diesel) engines with little or no modifications. Biodiesel is simple to use, biodegradable, nontoxic, and essentially free of sulfur and aromatics.

How is biodiesel made?

Biodiesel is made through a chemical process called transesterification whereby the glycerin is separated from the fat or vegetable oil. The process leaves behind two products -- methyl esters (the chemical name for biodiesel) and glycerin (a valuable byproduct usually sold to be used in soaps and other products).

Is Biodiesel the same thing as raw vegetable oil?

No! Fuel-grade biodiesel must be produced to strict industry specifications (ASTM D6751) in order to insure proper performance. Biodiesel is the only alternative fuel to have fully completed the health effects testing requirements of the 1990 Clean Air Act Amendments. Biodiesel that meets ASTM D6751 and is legally registered with the Environmental Protection Agency is a legal motor fuel for sale and distribution. Raw vegetable oil cannot meet biodiesel fuel specifications, it is not registered with the EPA, and it is not a legal motor fuel.

Biodiesel is defined as mono-alkyl esters of long chain fatty acids derived from vegetable oils or animal fats which conform to ASTM D6751 specifications for use in diesel engines. Biodiesel refers to the pure fuel before blending with diesel fuel. Biodiesel blends are denoted as, "BXX" with "XX" representing the percentage of biodiesel contained in the blend (ie: B20 is 20% biodiesel, 80% petroleum diesel).
