Safety Breakaways

The NTS Series Safety Breakaway Coupling from OPW represents the best available technology to protect your equipment, your people and the environment. Whether you are loading tank trucks, railcars, barges or ships, with liquid or gas; the NTS is designed to separate in the event of an unintended pull-away. Non-return valves positively shut both ends preventing spills and protecting the loading station at the same time.

Want more? The NTS can also be reassembled without tools or spare parts. You're back up and running in a matter of minutes.

Protect your equipment!

Protect your personnel!

Protect the environment!


FNPT or Flange (150/300#)
Sizes 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request)
Max. Pressure 360 PSI (Alu 232 PSI)
Materials 316 Stainless Steel (Anodized Aluminum in 4" size only)
Seals Fluorocarbon, EPDM, Chemraz®
*Other materials available upon request.

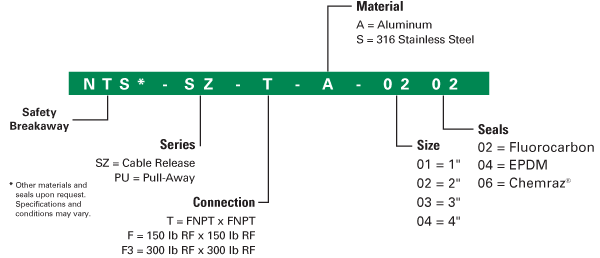

Order Guide
