11A® and 11B® Automatic Nozzles

The most trusted conventional nozzles in the world, OPW 11® Series nozzles set the industry standard for durability, safety and user experience in petroleum filling applications. Equipped with automatic shutoff, 11 Series nozzles minimize spills, maximize uptime and ensure a safer, smoother fueling experience for both customers and service technicians.

OPW 11B (Leaded) and 11BP (Unleaded) nozzles are designed to help prevent gasoline/diesel spills in retail and commercial filling applications, including pre-pay, self- and full-service, credit/debit card rewarders, or card-lock systems. The 11B and 11BP will not open until the pumping system is pressurized and close automatically when the pressure is removed (no-pressure, no-flow feature).

These nozzles now feature redesigned ergonomics and improved functionality — all while maintaining the unmatched reliability trusted around the globe, including:

A patented easy-open feature with a reduced opening force (US Pat: 12,227,408)
A new ergonomically designed grip featuring a new barrel cover and lever
A newly designed scuff guard

Features & Benefits

Safe for Use

UL- and ULc-Listed for use in gasoline, diesel and up to 85% ethanol blends. See specific listings.
No-pressure, no-flow feature helps prevent spills in pre-pay and cardlock systems (11B & 11BP).
Prevents the consumer from jamming the nozzle in an open position with a blocker on the lever guard.
FlowLock™ allows the nozzle to shut off when falling out of a vehicle and is tipped up, limiting spillage and unsafe conditions.

Durable and Long-Lasting Design

Lab cycle-tested and proven to last longer than 1 million cycles – better than any other nozzle available on the market.
100% of the nozzles tested to UL requirements.
Durable lever guard that won’t scratch your customers’ vehicles – made from Duratuff®.
Long-lasting hold-open clip spring.

Appealing to Customers

Easy to use – utilizing Accu-Stop® to-the-penny Flow Control Technology.
Attractive 2-Piece NEWGARD™ Hand Insulator – the most comfortable nozzle in the industry to use.
Convenient – one-finger hold-open clip that is easy to set the flow rate (not on all models).

Design working pressure

50 psi (3.45 bar) maximum pressure.

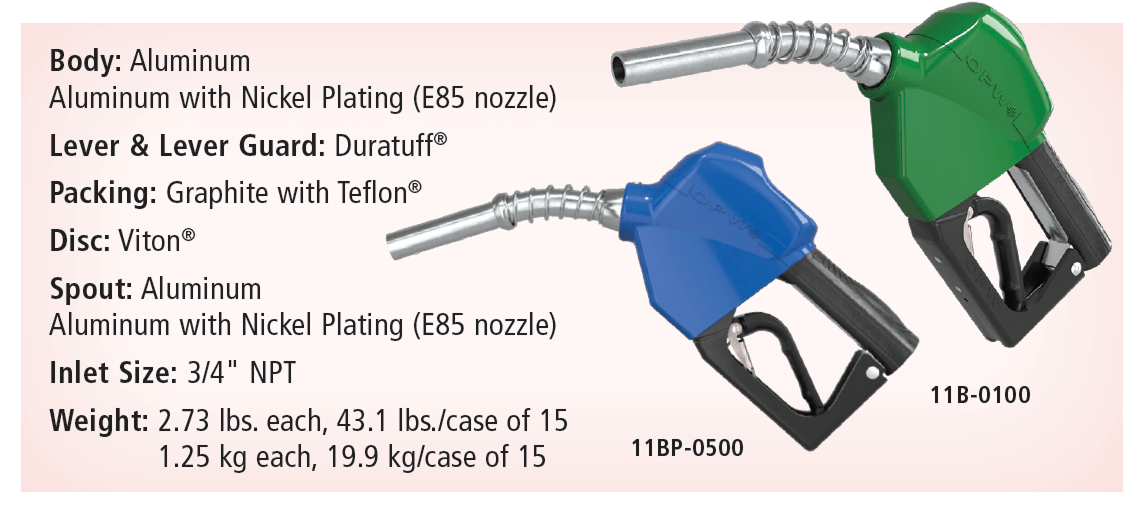

Materials

Body: Aluminum, Aluminum with Nickel Plating (E85 nozzle)
Lever & Lever Guard: Duratuff®
Packing: Graphite with Teflon®
Disc: Viton®
Spout: Aluminum, Aluminum with Nickel Plating (E85 nozzle)
Inlet Size: 3/4" NPT
Weight: 2.73 lbs. each, 43.1 lbs./case of 15, 1.25 kg each, 19.9 kg/case of 15

Performance

Listings and Certifications

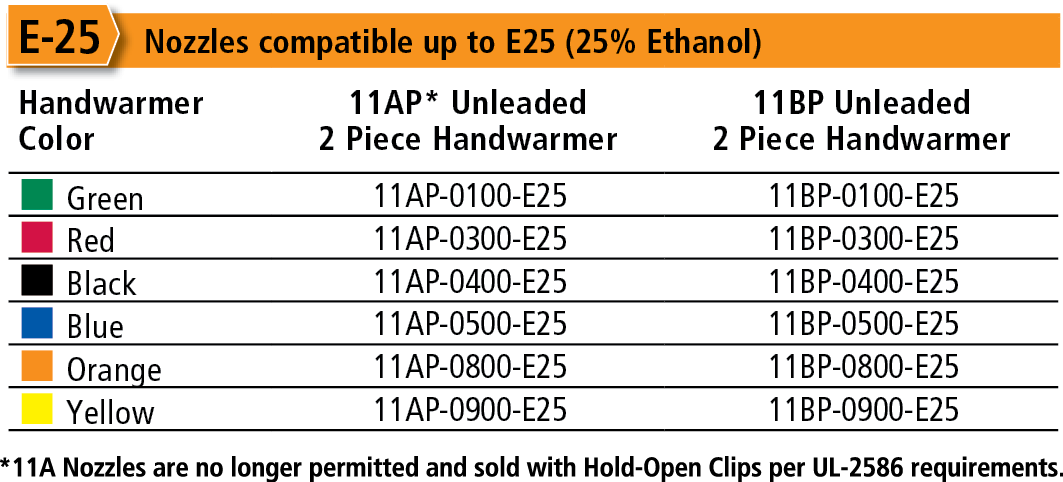

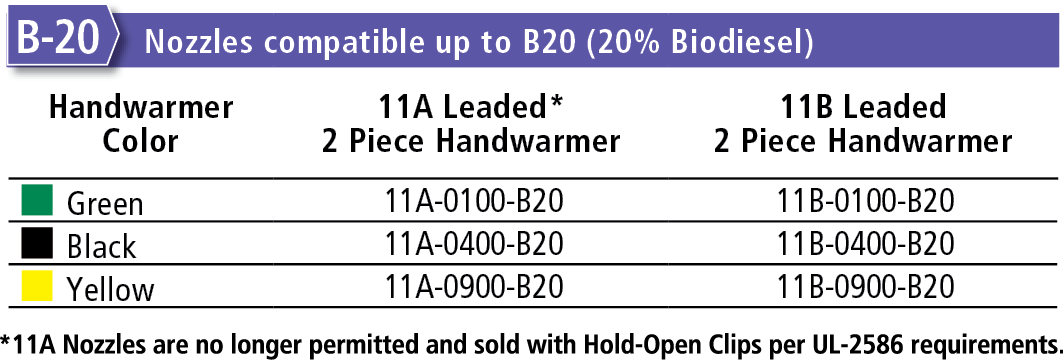

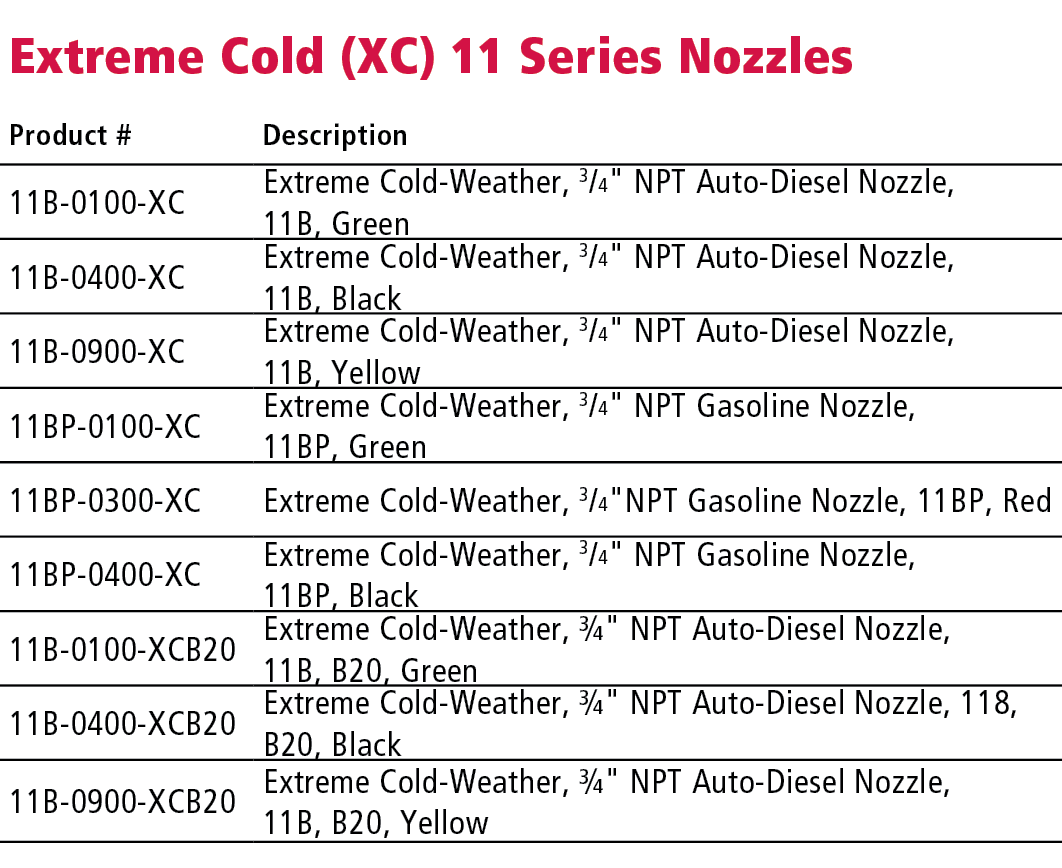

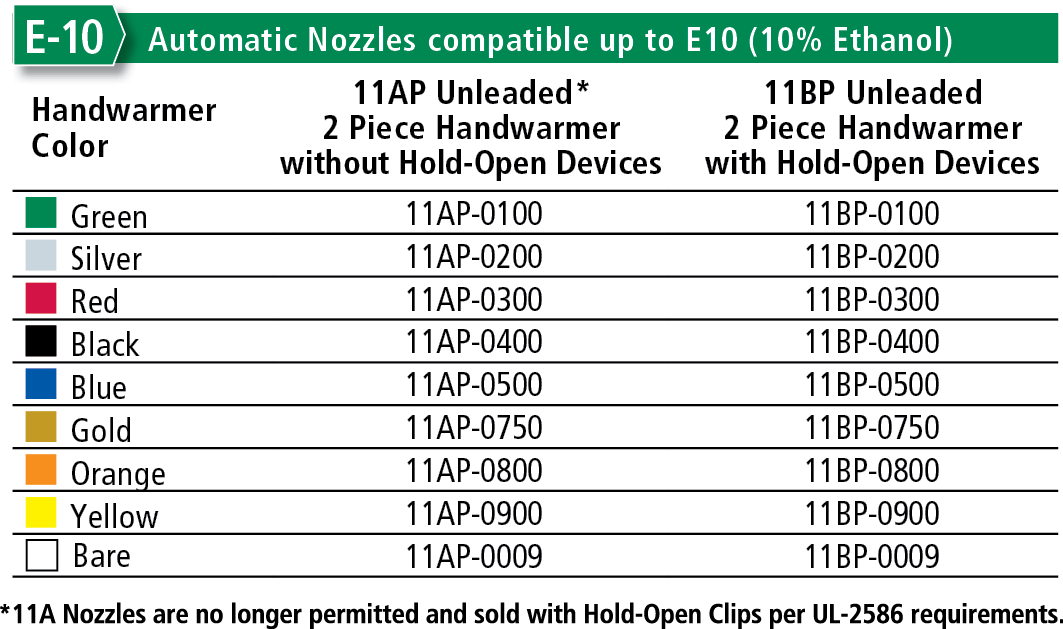

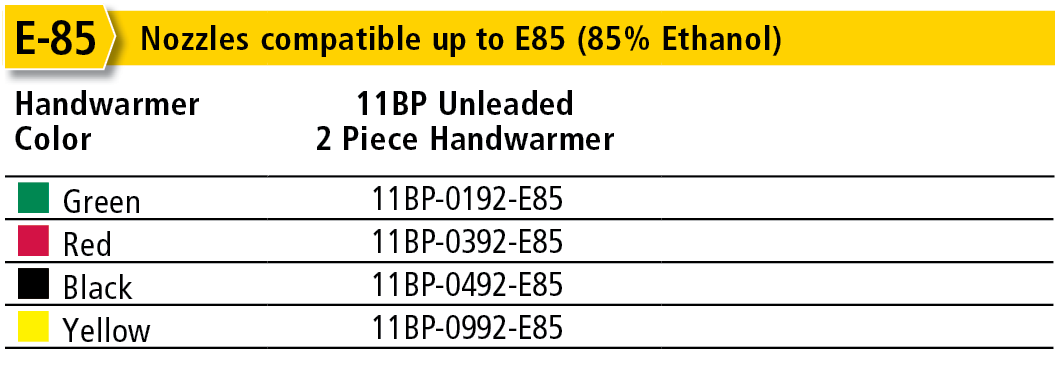

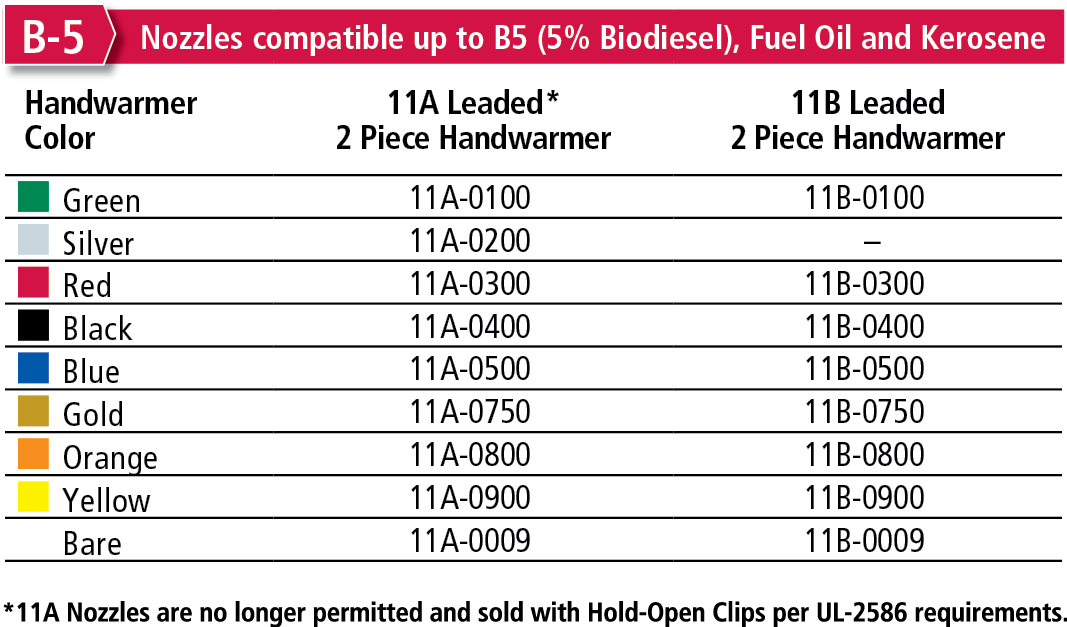

Ordering Specifications

Two-Piece Hand Insulator Color Options

Custom Colors

With minimum quantities. Contact OPW Customer Service.

Customize and Colorize

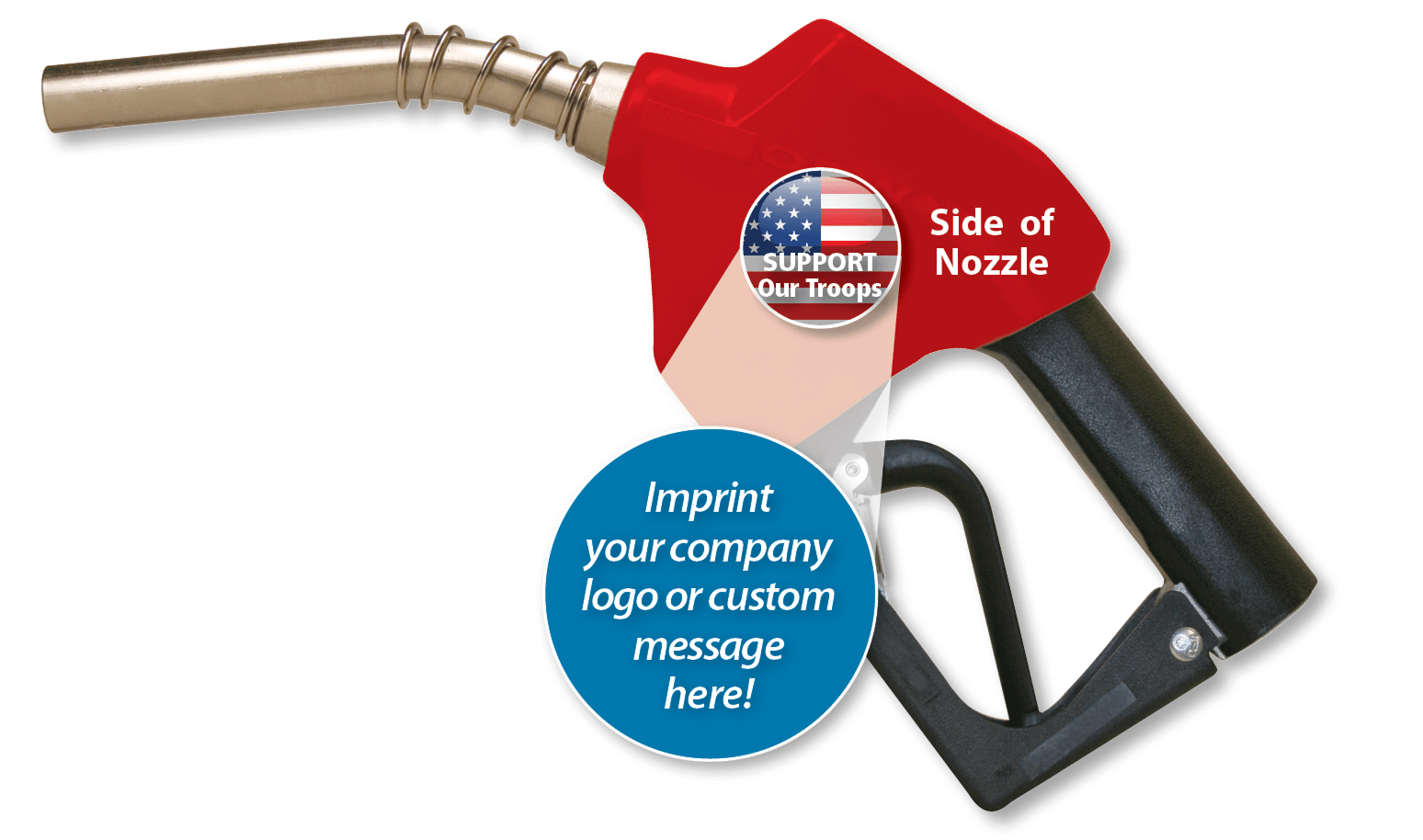

Imprint your company logo or custom message to any color hand insulator

OPW can help you enhance your brand image, drive traffic into your store, and deliver important messages to your customers with its new Enhanced Nozzle Program.

Now you can imprint company names, logos and/or special promotional messages on to your nozzles!

Differentiate your store from all others. Choose from a wide array of standard hand insulator colors or create your own custom color hand insulator.

We Offer You The Convenience of Choice.

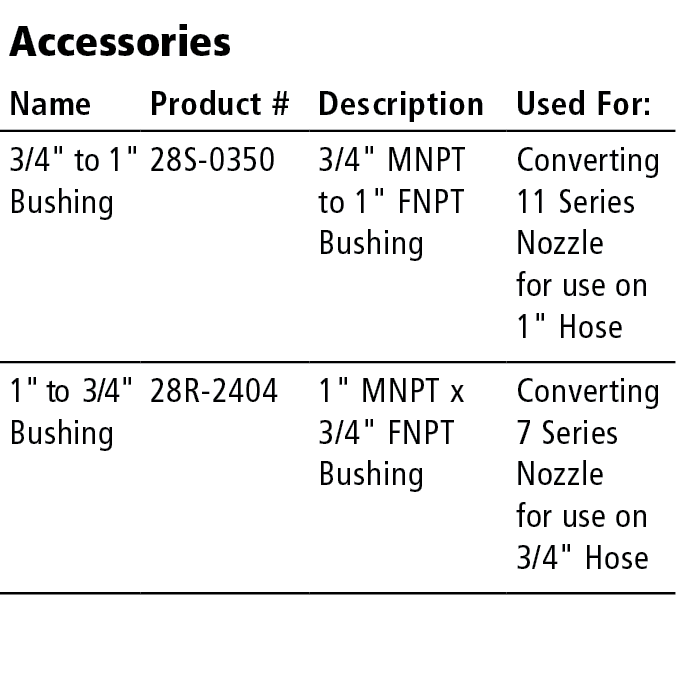

Accessories

28R-2404 Bushing Adaptor

28S-0350 Bushing Adaptor

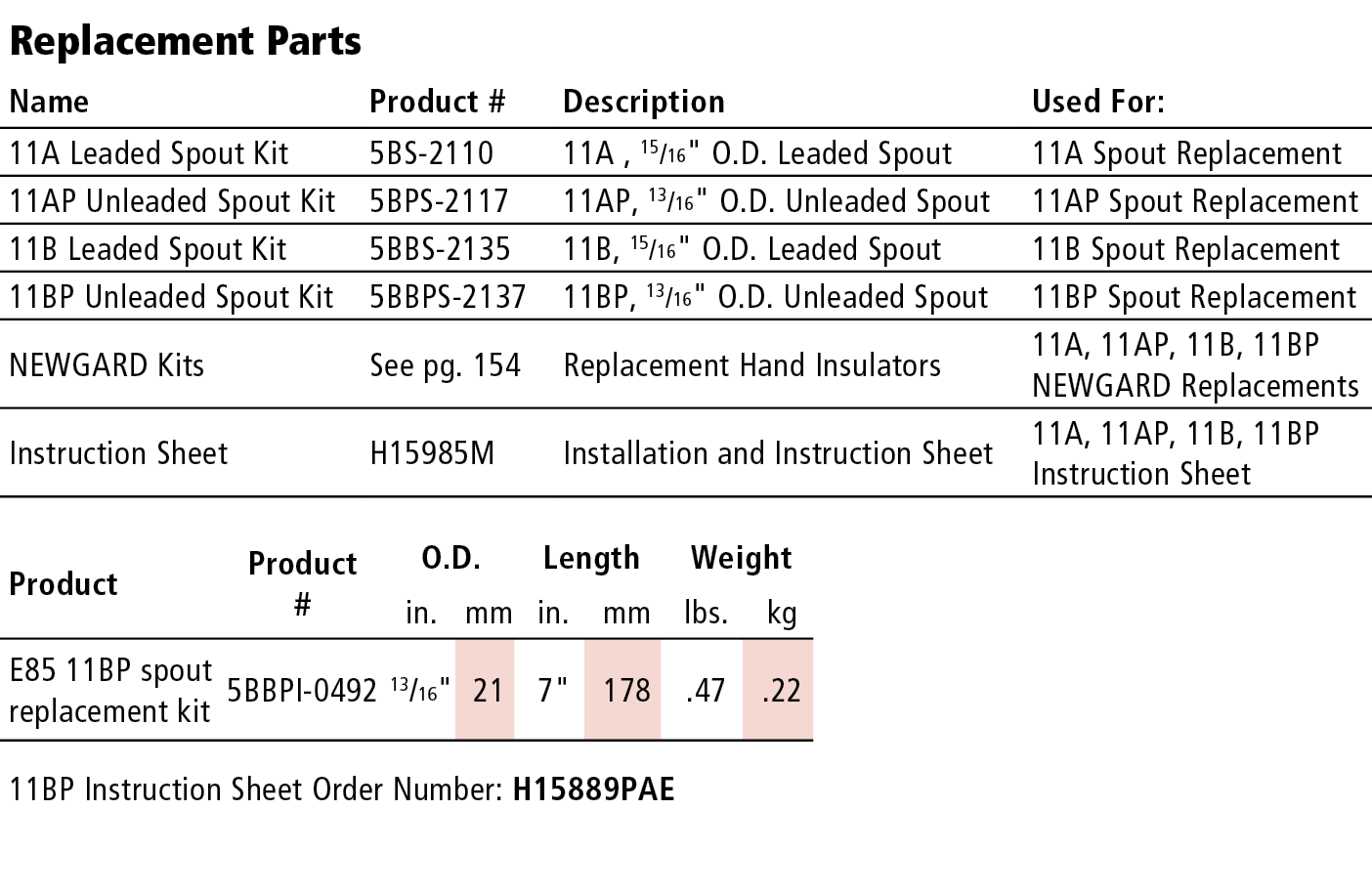

Replacement Parts

OPW 5BS and 5BBS Leaded, Diesel, Kerosene Spout

OPW 5BBPS and 5BPS Unleaded Spout

Notes & Warnings

Warning

Do not use OPW 11A® nozzles with a hold-open device on pre-pay self-service installations. Use the OPW 11B® or the 11A® without a hold-open device. Failure to comply is a violation of NFPA Code 30A, and may create a hazardous condition. Use of foreign objects to hold open automatic nozzles could result in shut-off failure and personal injury.
