Bespoke Fibrelite Tank Sump Bonding System Eliminates Need To Replace Tanks At Shell Fenstanton
Fibrelite chambers bonded directly to previously installed fuel tanks upstands
Project Overview
Fibrelite’s UK engineering team created a bespoke chemical bonding system to attach GRP tank sumps to the old steel tanks, eliminating the need to replace them.
As part of the refurbishment of Shell Fenstanton, new tank sumps were required, however the old steel fuel tanks did not have upstands for the chambers to bolt to.

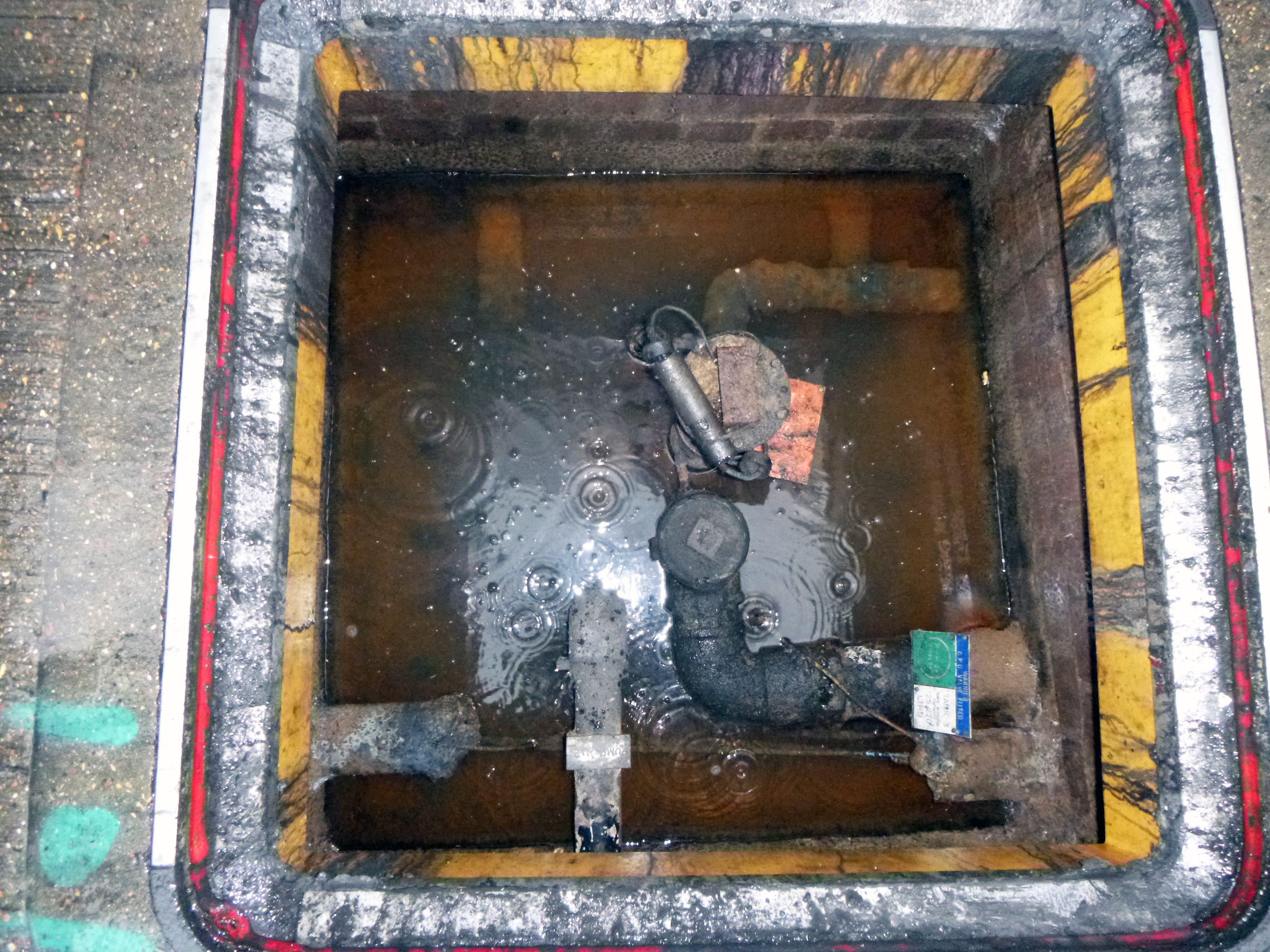

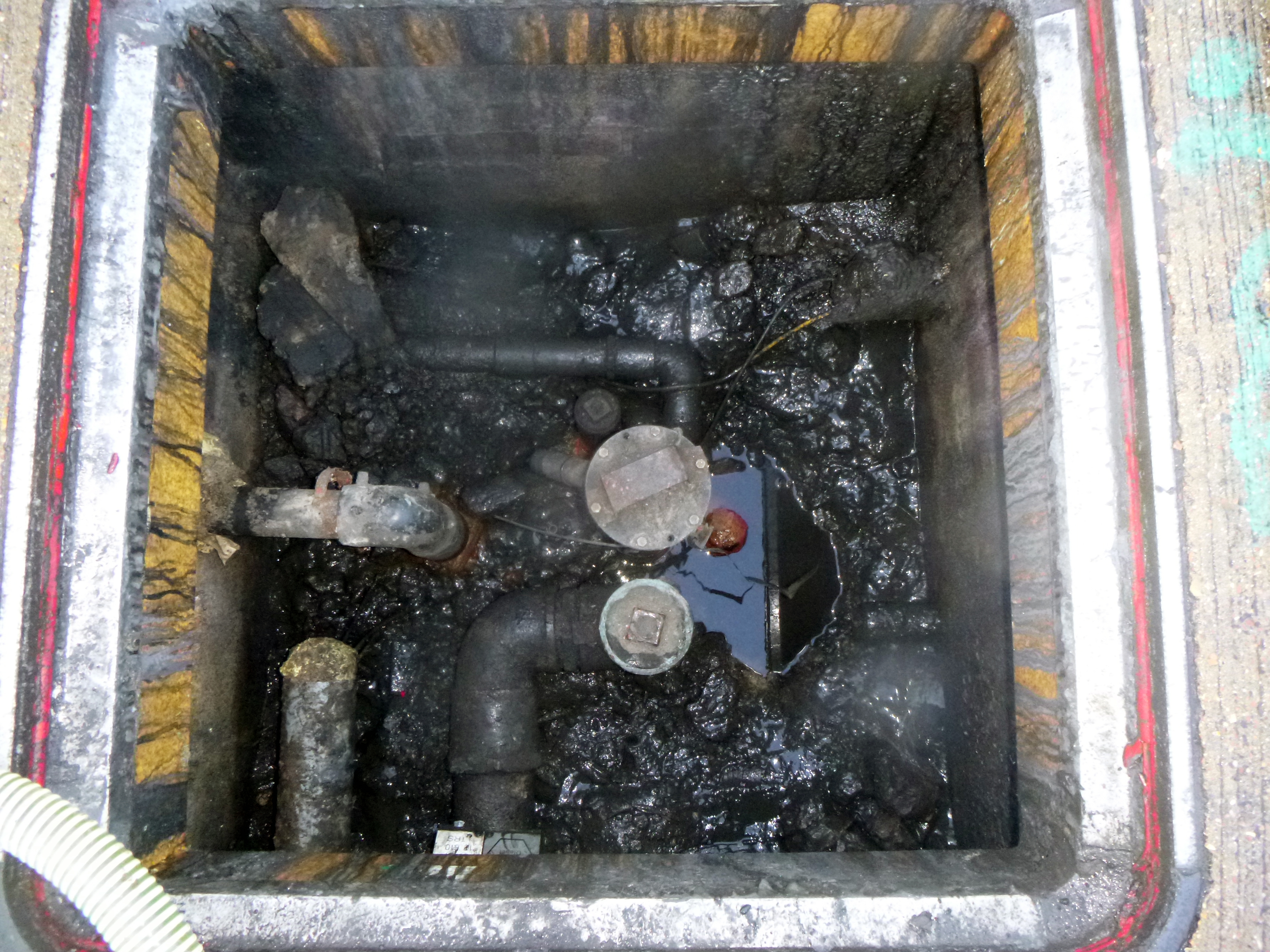

Previously installed brick chambers
Problem
Shell required a retrofit watertight solution to replace previously installed brick chambers without replacing the tanks. The old tanks did not have an upstand, which made installation challenging as bolt down chambers could not be used.

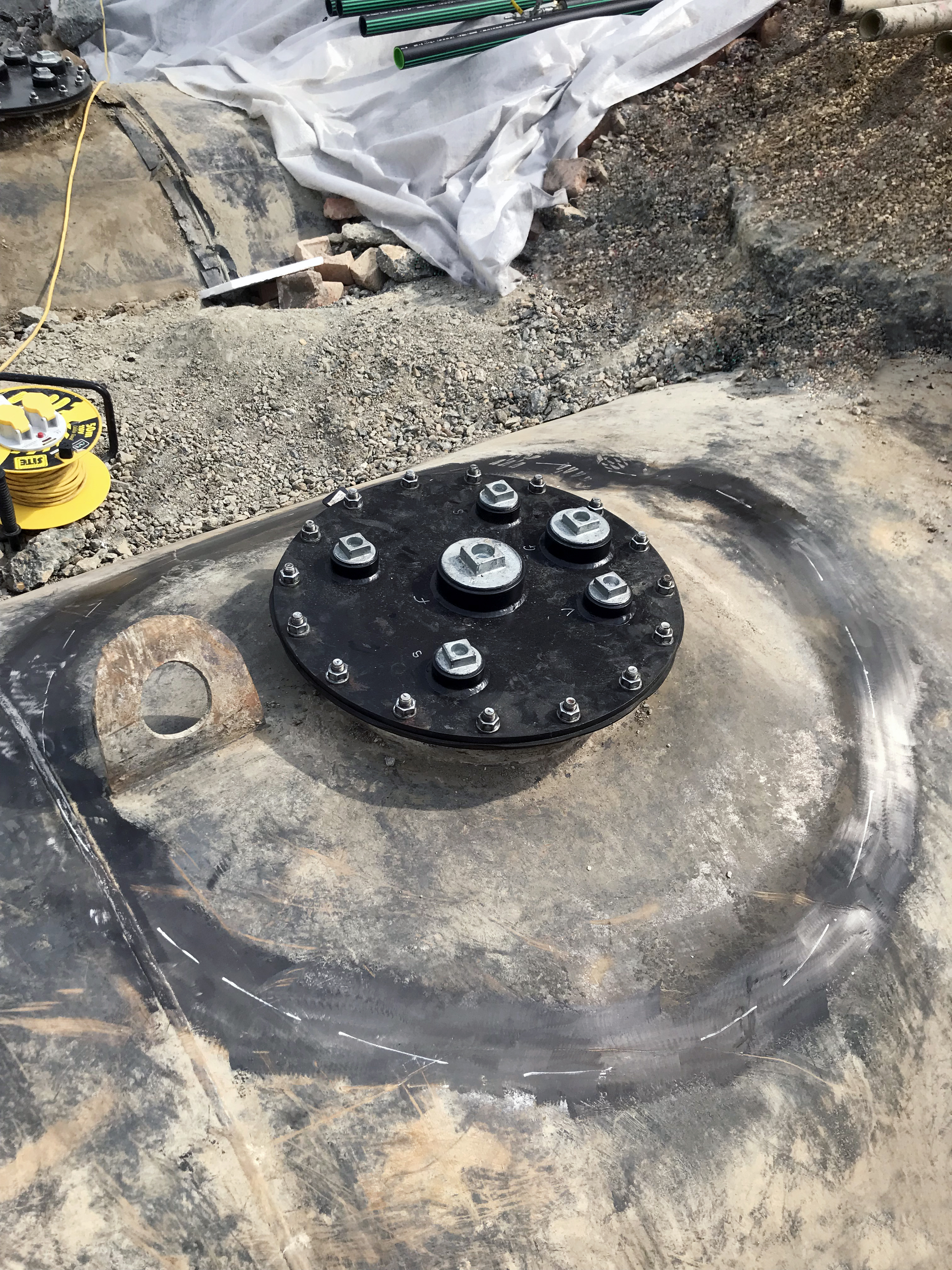

Preparation of the steel tanks and collar was key
An expoxy putty compound was used to bond the collar directly to the tank
Solution
Fibrelite used a multi-facetted GRP chamber system and an epoxy putty compound to bond the collar directly onto the steel tank. After bonding the collar to the tank, Fibrelite laminated the chamber to the collar. Preparation of the steel tank and of the collar before bonding was key.

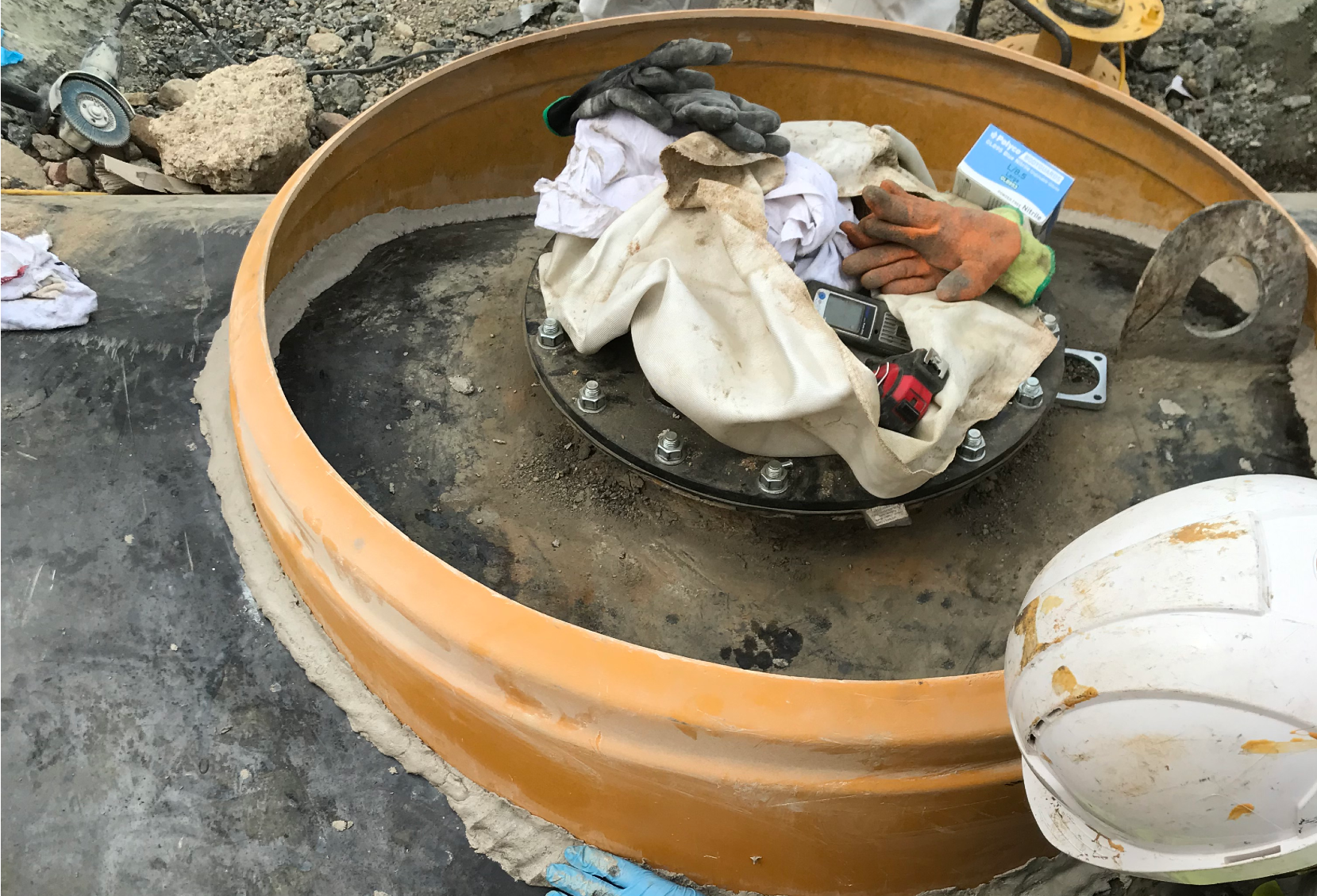

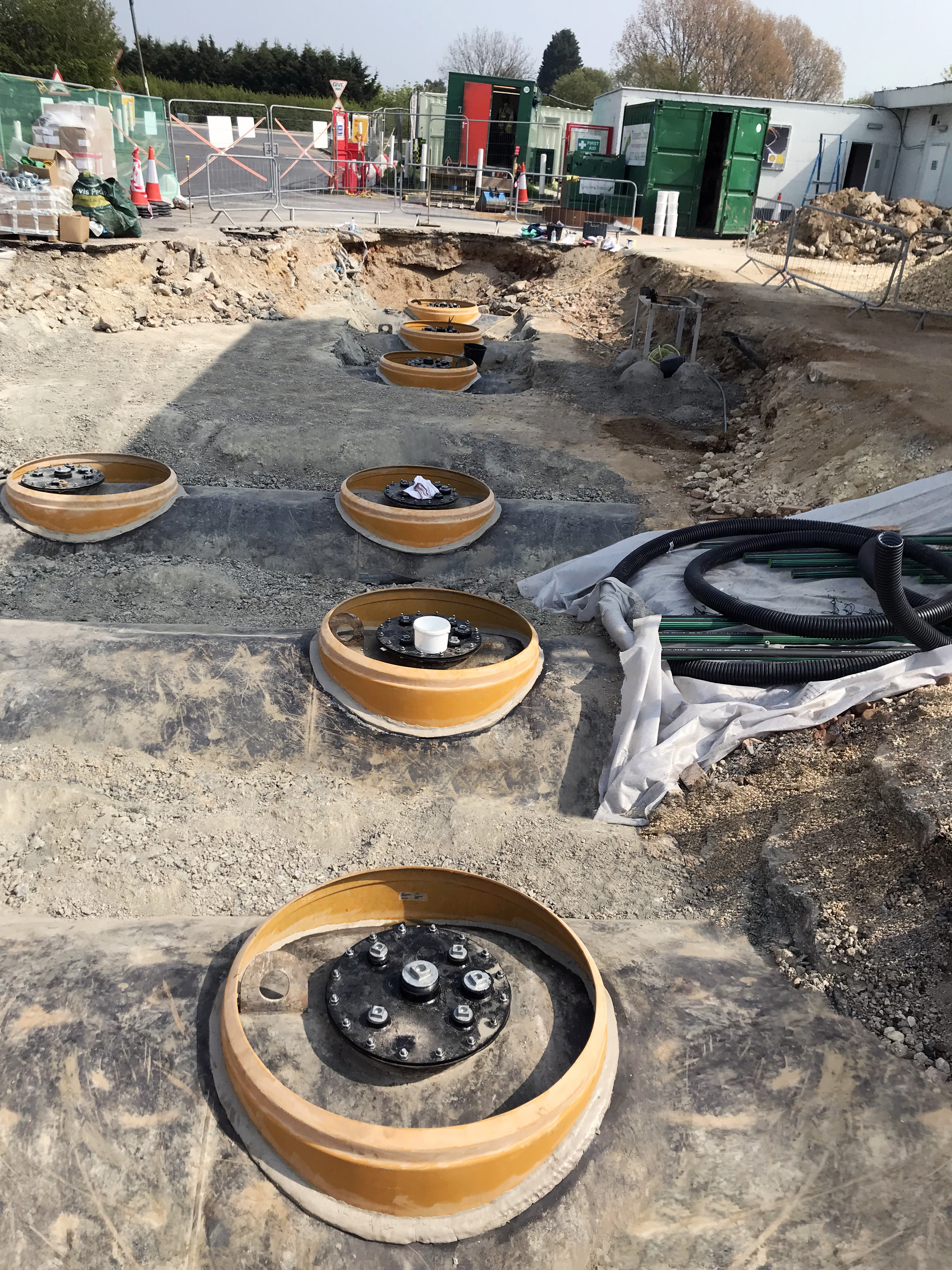

Bonding of the collar to the tank

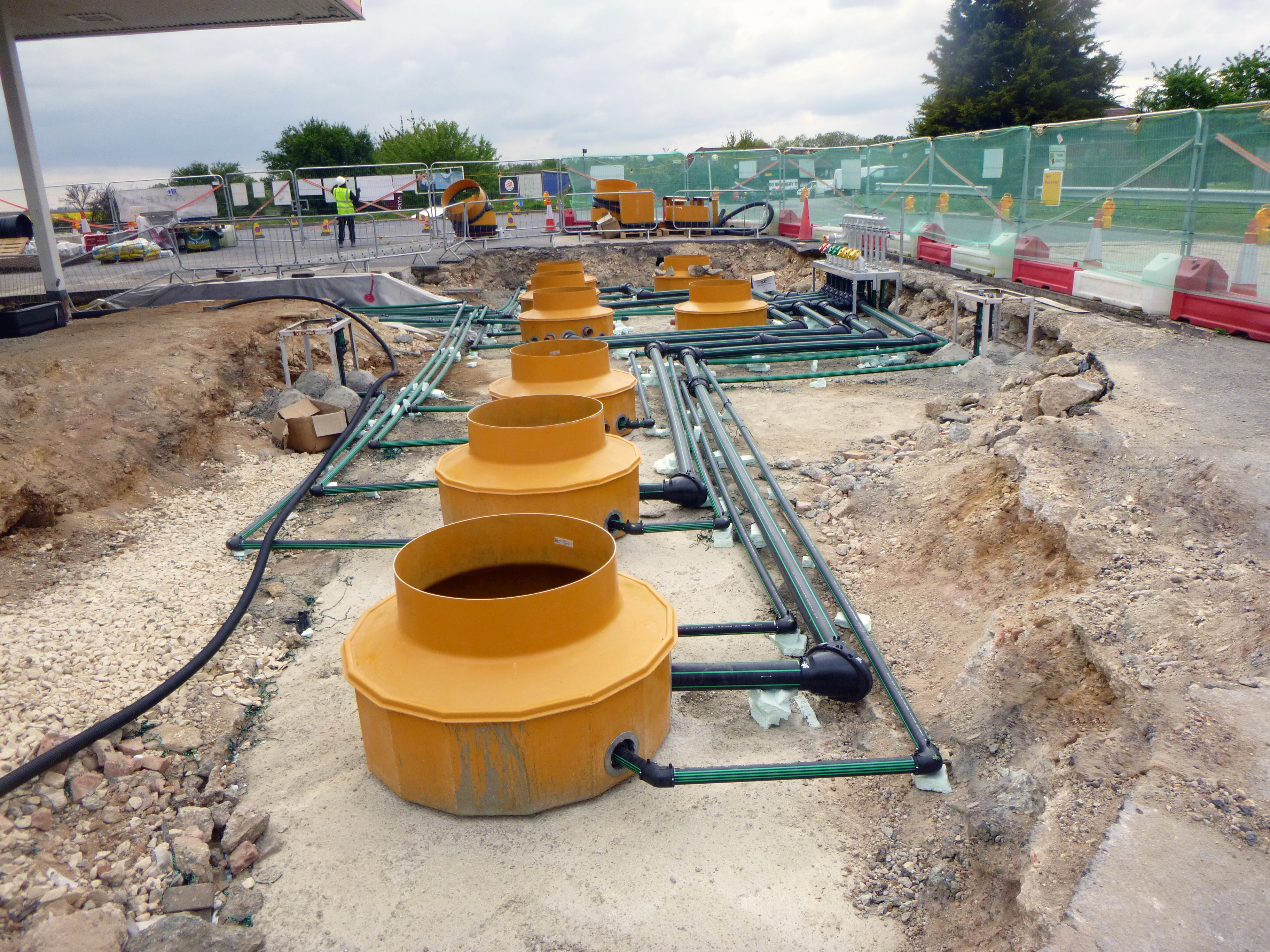

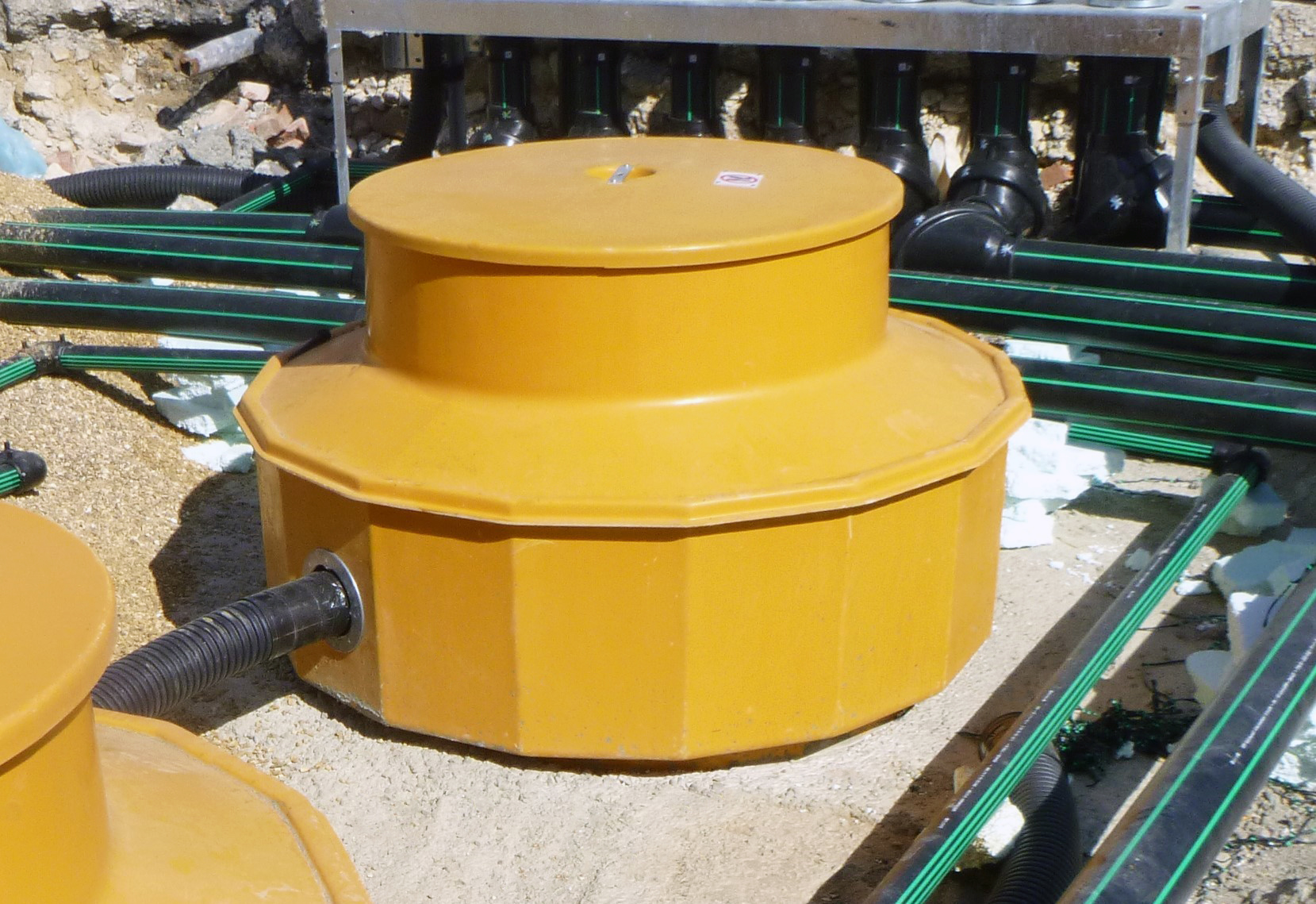

Fibrelite tank chambers were laminated to the collars
Results
Bonding the chambers directly onto the existing tanks saved Shell time and money on installation while providing a fully watertight chamber system, which will endure year after year.
The site team conducted a vacuum test onsite after the install to ensure water tightness of the chambers.
