General Purpose Swivel Joints - 3000 Series

Available in a variety of materials, sizes and styles to meet virtually any application.

  • Sizes: 3/4” to 12”
  • Standard Materials: Aluminum, Bronze, Carbon Steel, Ductile Iron, 316 Stainless Steel
  • Standard Seals: Buna-N, Fluorocarbon, PTFE, EPDM, Neoprene, Kalrez®
  • End Connections: FNPT, 150/300 ANSI Flanged Ends, Butt/Socket Welds

Metal Options

  • Aluminum (ASTM B26, A356 T6)
  • Bronze ( ASTM B62-83600)
  • Carbon Steel (ASTM A105)
  • Ductile Iron (ASTM A-536)
  • Stainless Steel (ASTM A351-CF3M/CF8M)

Seal Options

  • Buna
  • Fluorocarbon
  • PTFE
  • EPDM
  • Neoprene
  • Kalrez

Lubrication

Lubrication plays an important role in the life expectancy of a swivel joint. OPW has done extensive research to determine the best lubricants for our products. Our standard is a High Performance Synthetic Lubricant (OPW part # 880-0089).

  • Specially formulated to reduce friction & wear.
  • Requires only annual lubrication
  • Will not drip, melt or carbonize
  • Complies with FDA regulation 21CFR178.3570
  • Temperature Range -40F – 750F (-40C – 399C)
  • Not for use with EPT/EPDM Seals. EPT/EPDM seals require the use of OPW 885-0085 lubricant.

Features

Swivel Styles

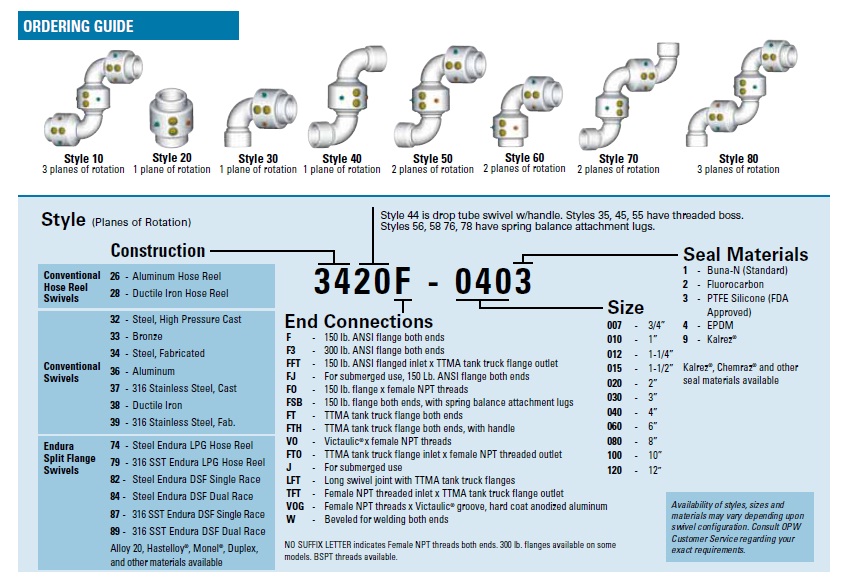

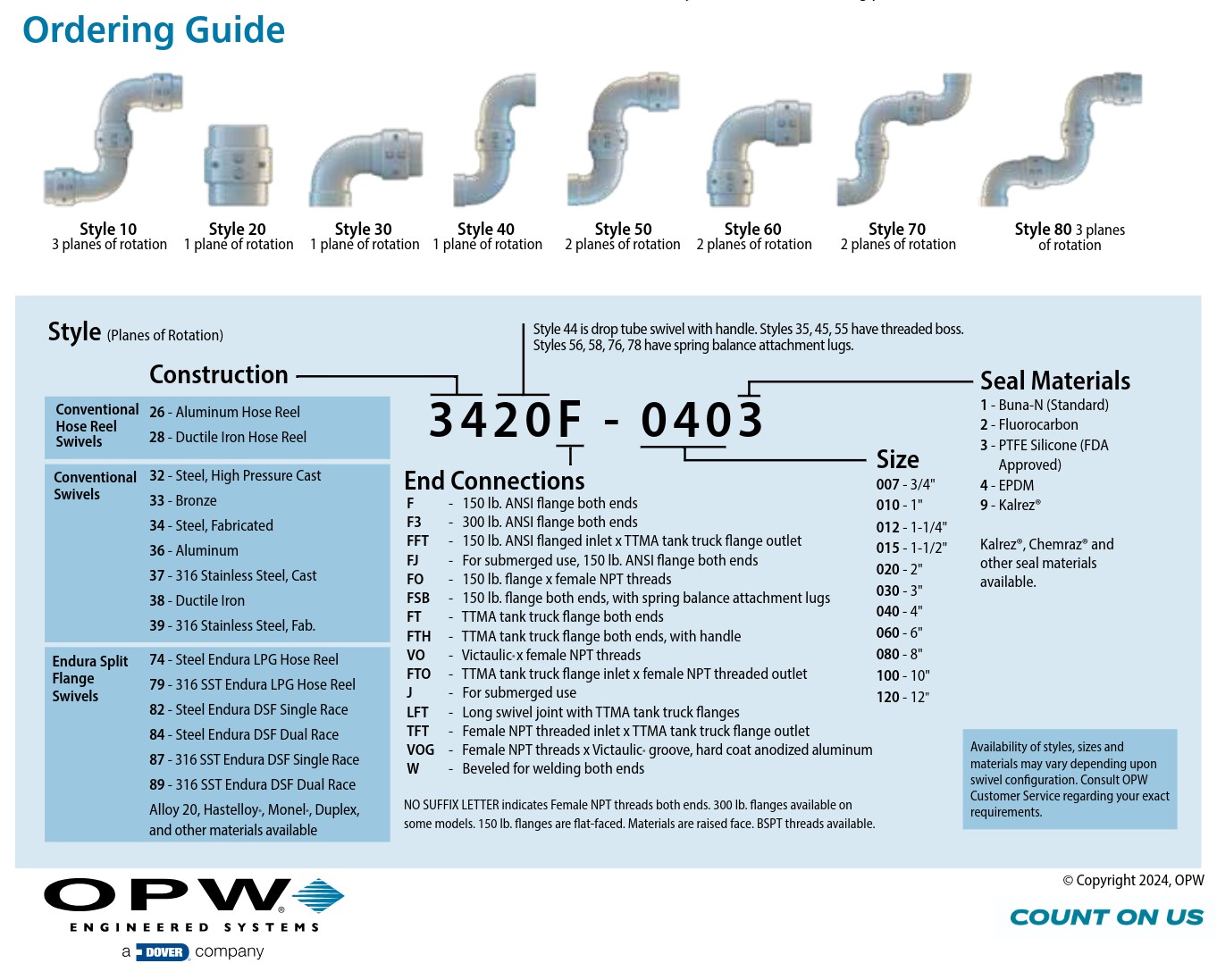

Order Guide
