OT300 and OT300BRASS Series LPG Nozzle

The OPW LPG OT300 and OT300BRASS are designed for the Italian-Type coupling. Nozzle inlet has 1" BSPP threads.

Features & Benefits
Ordering Specifications

Materials

Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: brass, stainless steel, anodized aluminum

Features & Benefits

User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
Individually Leak Tested and Inspected with Traceable Serial Numbers.
Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.

Technical Specifications

MAWP: 25 bar
Weight: 3.08 lbs. (1.40 kg)
Locking Release: Trigger on lever
Coupling Style: Italian Style
Temperature Range: -40° F to 185° F (-40° C to 85° C)

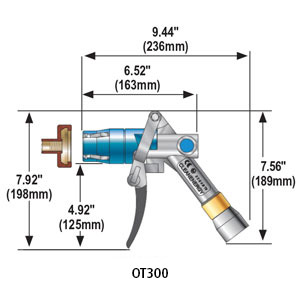

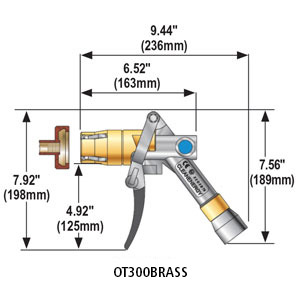

Dimensions

Accessories
