OPW 295SA & SAJ Aircraft Nozzles

For Overwing Aircraft Service

Features & Benefits

Features

Aluminum Body - lighter weight, easier to maneuver.
Dual Poppets - easy-to-open nozzle against high inlet pressures.
Color-Coded Composite Lever Guards - helps distinguish between AVGAS and Jet A. Easily replaced in lever guard kit.
Right Angle Design - provides larger lever area for better grip and easier control.
Vinyl-Coated Lever - insulates fingers against cold.
100 Mesh Strainer - prevents foreign matter from entering fuel tank; easy to remove and clean.
Dust Cap - keeps spout free from dirt and stops fuel drippage when connected.
Adjustable Dash Pot - permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow.
Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
Built-In Swivel - eliminates twisting and kinking of the hose. This swivel is electroless nickel-plated and has full-bearing surfaces.
NPT Female Threads at Inlet End of 295SA - accepts all 1", 1-1/4" or 1-1/2" male connections.
NPT Female Threads at Inlet End of 295SAJ - accepts all 1-1/2" male connections.
Unique Jet Aircraft Spout Design of 295SAJ - to help prevent inadvertent fueling of piston engine aircraft with turbine fuel.
Ground Wire Assembly - included on all aviation nozzles.

Design working pressure

110 psi (7.58 bar) maximum pressure

Materials

Body: Cast Aluminum
Main Stem: Stainless Steel
Stem Seal: Buna-N O-Ring
Disc: Viton®
Spout: Aluminum

Performance

Ordering Specifications

Product #	Inlet Thread			Spout O.D.
Product #	in.	mm	lbs.	kg	in.	mm
295SA-0135	1	25	4.6	2.1	1	25
295SA-0136	1-1/4	32	4.5	2	1	25
295SA-0137	1-1/2	38	4.5	2	1	25
295SA-0138	1-1/2	38	5.1	2.3	1-5/8	41
295SAJ-0200	1-1/2	38	5.6	2.5	2-2/3	54
295SAC-0156*	1-1/4	32	4.5	2	1	25
295SAC-0157*	1-1/2	38	4.5	2	1	25
295SAC-0158*	1-1/2	38	5.15	2.3	1-5/8	41
295SACJ-0200*	1-1/2	38	5.65	2.6	2-2/3	54

* Check Valve

Replacement Parts

Lever Guard Replacement Kits

Product #	Nozzle
295KLG-0300	295SA-0135, 0136, 0137, 295SAC-0156, 0157 Red
295KLG-0350	295SA-0138, 275SAC-0158 Red
295KLG-0400	295SAJ-0200, 295SACJ-0200 Black

All lever guard kits include new lever sub-assembly.

295 Series Instruction Sheet Order Number: H09237PA

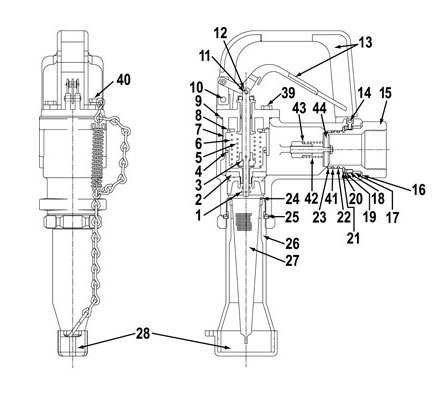

Replacement Parts - OPW 295SA/295SAC & 295SAJ

Key	Part #	Description	295SA - 0135 inlet/spout 1" x 1"	295SA - 0136 & 295SAC - 0156 inlet/spout 1-1/4" x 1"	295SA - 0137 & 295SAC - 0157 inlet/spout 1-1/2" x 1"	295SA - 0138 & 295SAC - 0158 inlet/spout 1-1/2" x 1-1/2"	295SAJ - 0200 & 295SACJ - 0200 inlet/spout 1-1/2" x 1-1/2"
1	H02477M	Cotter Pin	•	•	•	•	•
2	H07719	Main Poppet S/A	•	•	•	•	•
3	H09420	Stem & Sec. Poppet				•	•
3	H09417	Stem & Sec. Poppet	•	•	•
4	H12706M	O-Ring	•	•	•	•	•
5	H09367M	Spring	•	•	•	•	•
6	H05064M	Spring	•	•	•	•	•
7	H05088M	Skirt	•	•	•	•	•
8	H05198M	Seal	•	•	•	•	•
9	H04828M	Seal	•	•	•	•	•
10	H03981RE	Pin	•	•	•	•	•
11	215290	Cotter Pin	•	•	•	•	•
12	H07580M	Rivet	•	•	•	•	•
13	295KLG-0300	Lever Guard Kit*	•	•	•
13	295KLG-0350	Lever Guard Kit*				•
13	295KLG-0400	Lever Guard Kit*
14	H13774M	Screw (3 req’d)*	•	•	•	•	•
15	295SWK-0007	Swivel Repair Kit**	•
15	295SWK-0009	Swivel Repair Kit**		•
15	295SWK-0014	Swivel Repair Kit**				•	•
15	295SWK-0013	Swivel Repair Kit**			•
16	H08886M	Dust Seal				•	•
16	H01227M	Dust Seal	•	•	•
17	H08887M	Bearing				•	•
17	H08879M	Bearing	•	•	•
18	H09713RS	Retainer				•	•
18	H09712RS	Retainer	•	•	•
19	H08881M	Thrust Bearing	•	•	•
19	H08889M	Thrust Bearing			•	•
20	H08882M	Lock RIng	•	•	•
20	H08890M	Lock Ring				•	•
21	H09365M	Retaining Ring	•	•	•
21	H09366M	Retaining Ring			•	•
22	H12319M	O-Ring, Buna-N	•	•	•
22	H12320M	O-Ring, Buna-N			•	•
23	H08884M	Bearing	•	•	•
23	H08892M	Bearing				•	•
24	H06026M	O-Ring	•	•	•
24	H07670M	O-Ring				•
24	H11499M	O-Ring					•
25	H05297M	O-Ring	•	•	•
25	H07766M	O-Ring				•
25	H10458M	O-Ring					•
26	297SA-9050	Spout S/A	•	•	•
26	297SA-9060	Spout S/A				•
26	696J-7010	Spout S/A					•
27	190S-7063	Strainer	•	•	•
27	153-0910	Strainer				•
27	153J-0100	Strainer					•
28	H10387	Cap & Chain S/A	•	•	•
28	H10388	Cap & Chain S/A			•
28	296CJ-0100	Cap & Chain S/A				•
29	H09212	Body Cap S/A**	•	•	•
29	H09213	Body Cap S/A**			•	•
30	H05135M	Retainer	•	•	•	•	•
31	H08441RS	Screw	•	•	•	•	•
32	H05087M	Felt Wiper	•	•	•	•	•
33	H05063M	Bushing	•	•	•	•	•
34	C02115A	Cap	•	•	•
34	C02117A	Cap				•	•
35	H12707M	O-Ring	•	•	•	•	•
36	H12705M	O-Ring	•	•	•	•	•
37	H04825M	Adj. Screw	•	•	•	•	•
38	190WM-8001	Ground Wire S/A	•	•	•	•	•
39	H07062M	Screw (4 req’d)	•	•	•	•	•
40	H06045M	Screws (2 req’d)	•	•	•	•	•
41	H13776M	O-Ring, Viton®				•	•
41	H13775M	O-Ring, Viton®	•	•	•

* Replacement part for nozzles built after 08/1998. Part is unavailable for nozzles built before this date.

** Includes 295SRK-0001 or 295SRK-0002 and contact ring.

** Body Cap sub-assembly includes parts 30-37.

Replacement Parts - OPW 295SAC & 295SACJ Only

Key	Part #	Description	295SAC-0156	295SAC-0157	295SAC-0158	295SACJ-0200
42	H07595M	Spring SST	•	•
42	H07593M	Spring SST			•	•
43	H07613M	Washer, nylon	•	•	•	•
44	H09214	Poppet S/A	•	•
44	H09215	Poppet S/A			•	•

295SRK Seal Repair Kit

Designed for use on 25 series swivels and 295 nozzles, the OPW 295SRK consists of a dust seal, 2 O-rings, 3 button-head screws, hex key and thread sealant.

Product #	Used On
295SRK-0001	25 and 295 Series 1", 1-1/4" (NPT)
295SRK-0002	25 and 295 Series 1-1/2" (NPT)
