Pomeco 102 Spring Balance Single Hose Retractors

POMECO 102 Spring Balance Single Hose Retractors keep excess hose off the ground and out of the way, prolonging hose life and reducing potential hazards. The POMECO 102 is a California Air Resources Board (CARB) certified Stage II component for use with single and dual hose dispensers as per Executive Order G-70-52-AM.

Features & Benefits

Easy to Use - The spring-loaded reel and stretch-resistant cable provide smooth and steady tension throughout hose extension and return.
Easy to Maintain - The removable sideplate provides full access to the mechanism for easy tension adjustment and unit maintenance. A convenient safety thumb screw is provided to lock the reel in place during tension adjustment.
Field Adjustable for Various Hose, Nozzle, Swivel, Breakaway Combinations - No need for upgrading components if a breakaway or swivel is added to the hose assembly. Simply change the tension setting on the spring-loaded hose reel.
Multiple Mounting Options - The POMECO 102 retractor housing is tapped on the top for bolting to overhead crossbars, and on the side for mounting to vertical posts. The 102 is available as a retractor kit (including post, retractor and mounting hardware) or as separate components. Models are also available for aboveground storage tank (AST) applications. AST models include a 44'' (112 cm) post with a freestanding base.

Materials

Housing: Cast aluminum
Cable: Black polyester
Post: Aluminum

Ordering Specifications

Vertical Retractor Kits (Box, Post, Bracket, Foot & Hardware)

Model Number	Mounting Method	Clamp Fits	Weight
Model Number	Mounting Method	Clamp Fits	lbs.	kg
6102-1039P	39" Retractor/Post Kit	(Hose Clamp Not Included)	12	5.4
6102-1078P	78" Retractor/Post Kit	(Hose Clamp Not Included)	14	6.4
6102-AST	44” AST Retractor /Post Kit	(Hose Clamp Not Included)	9	4.1

102 Spring Balance Hose Retractor Instruction Sheet Order Number: H15853PA

Ordering Specifications

Separate Retractor Components (Box Only)

Model Number	Description	Mounting Method	Clamp Fits				Weight
			Hose O.D.		Hose I.D.		Weight
			in.	mm	in.	mm	lbs.	kg
6102-1000	Standard Duty Retractor Box, 2 -10 lb retraction strength	Overhead Crossbar/Vertical Post	(Hose Clamp Not Included)				7	3.2
6102-1100	Heavy Duty Retractor Box, 12-20 lb retraction strength	Overhead Crossbar/Vertical Post	(Hose Clamp Not Included)				7	3.2
6102-4000		Overhead Crossbar/Vertical Post	1-3⁄8"	35	1"	25	7	3.2
6102-6000		Overhead Crossbar	1-1⁄32"	26	5⁄8" or 3⁄4"	16 or 19	7	3.2
6102-8000		Overhead Crossbar	1"	25	5⁄8 "	16	7	3.2

*POMECO recommends using CO5238M, CO5261M or P100-3F/P100-44/P100-2AST for use with 102 Series retractors.
Other size tubes and clamps available upon request.

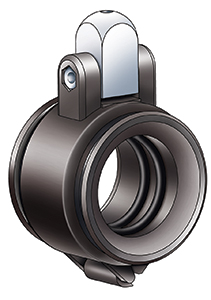

Hose Clamp

Ordering Specifications

Hose Clamps

Model Number	Hose Clamp Size*
PB-1396	Standard 1-3/8" O.D. Hose (1" I.D.)
PB-1394	Standard 1-1/8" O.D. Hose (3/4" I.D.)
PB-1375	Standard 1-1/32" O.D.Hose (5/8" or 3/4" I.D.)
PB-1373	Standard 1" O.D. Hose (5/8" I.D.)
PB-1344	Balanced Coaxial, Goodyear Premier

*Other sizes available upon request

Replacement Parts

Options Replacement Parts

Model Number	Hose Clamp Size
C05238M	Post Kit, 39" (99 cm), 1-1/8" x 2"
C05261M	Post Kit, 78" (198 cm), 1-1/8" x 2"
H15212M	10' Replacement Cable
P338SPOOL	338' Spool of Retractor Cable
H15210M (P102-02)	Replacement Cable Guide
H15211M	Replacement Reel
P100-4STF	AST Replacement Base
P100-2AST	Sliding Bracket (AST)

Downloads

Catalog Page
