VISI-FLO® 1400 Series Sight Flow Indicators

Designed for applications with maximum operating pressure of 200 psig (13.8 bar) and/or temperature of 225ºF (107ºC).

  • Exclusive 3-Year “No-Leak” Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
  • Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
  • Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes
  • High Vacuum-Service Rating: Rated for vacuum service up to 635 mm (25”) at 85.5% vacuum, which equates to 12.3-psi (0.84 bar) vacuum
  • Four Indicator Styles: Drip Tube, Propeller, Bi-Directional Flapper, Bi-Directional Plane
  • 48-Hour Shipping for Most Items

Four Indicator Styles

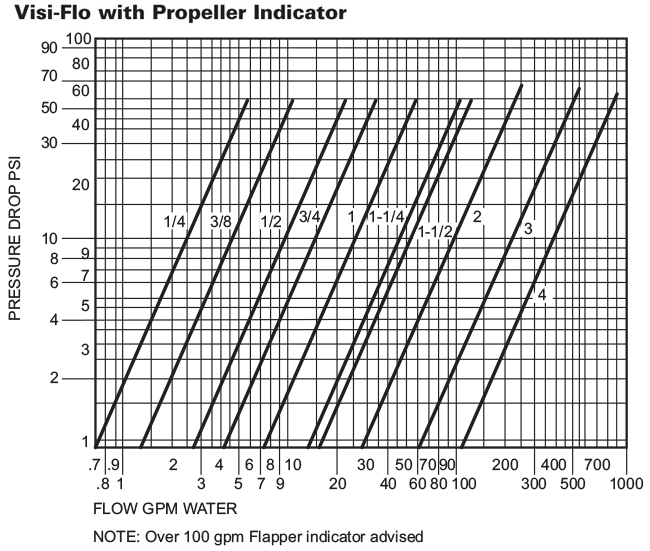

Drip Tube – Ideal for gravity, extremely low or intermittent flow. Keeps product from dripping on the glass. Assures constant see-through for vertical lines. Propeller – The best way to show flow of opaque liquids. Ideal for observation at a distance. Flow from right to left is standard. Specify if left to right flow is needed. Not recommended for flow rates above 100 GPM.

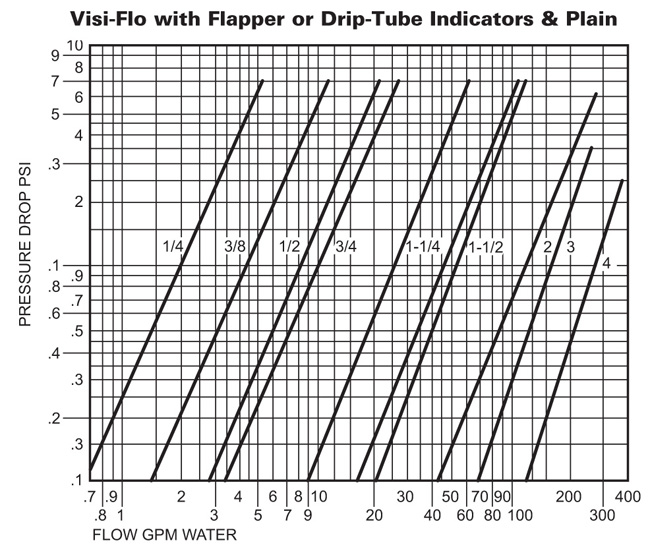

Bi-Directional Flapper – This indicator points in either direction to show you at a glance which way the liquid is flowing. Bi-Directional Plain – When the color and clarity of your liquid are of prime importance.

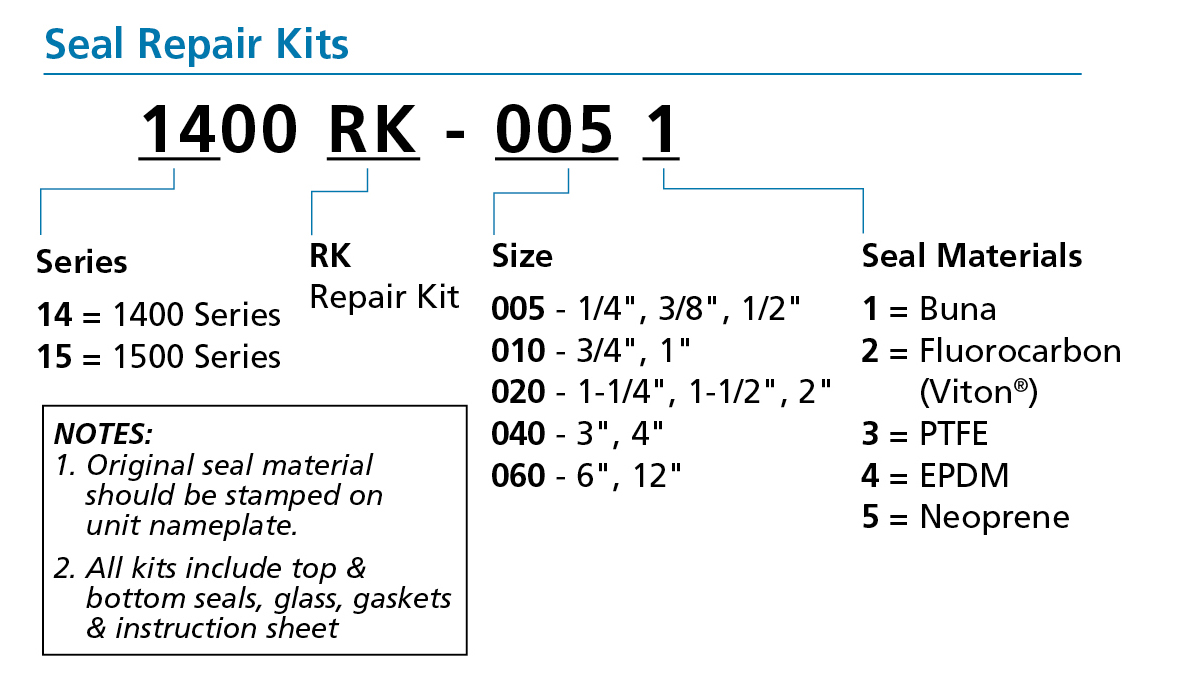

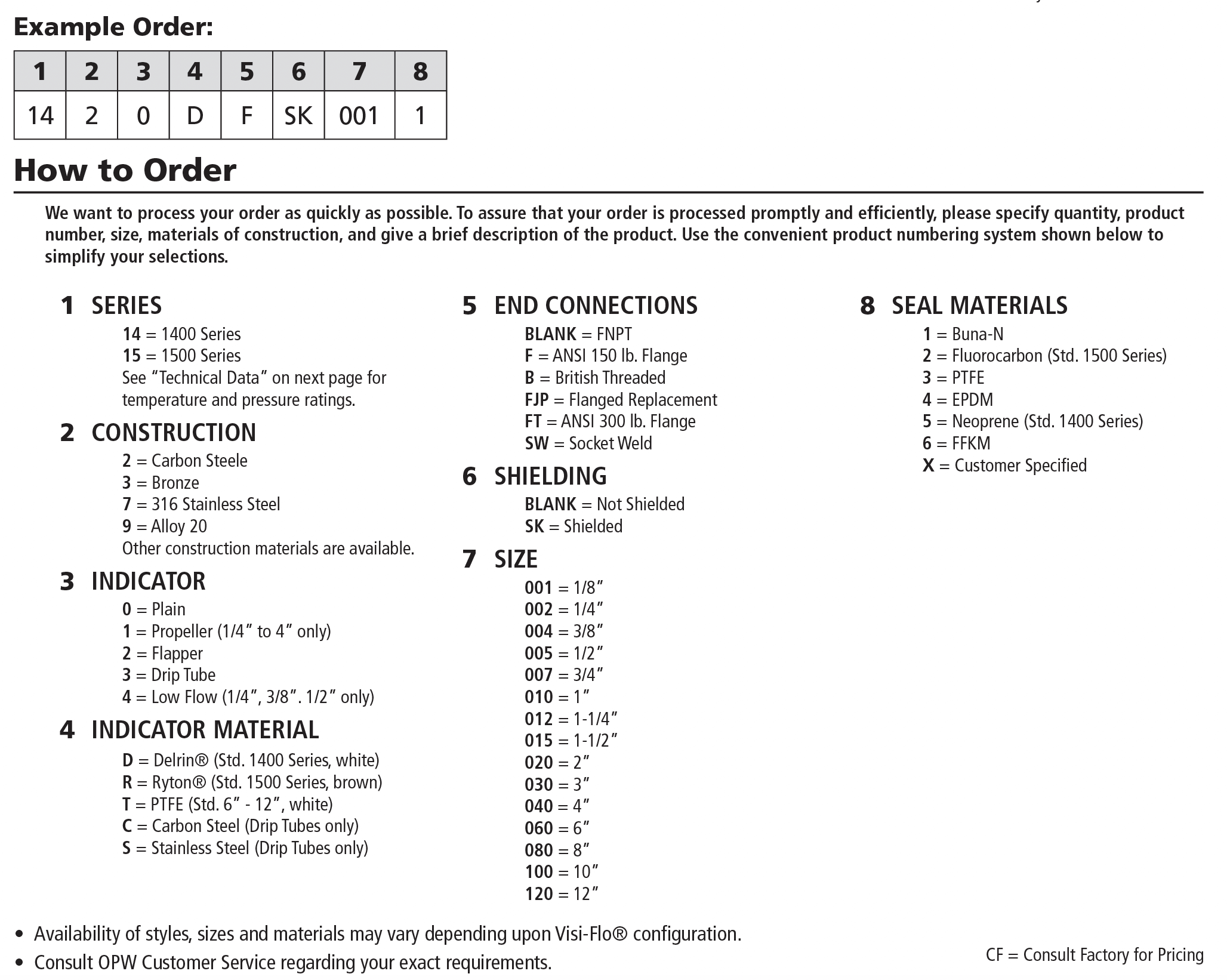

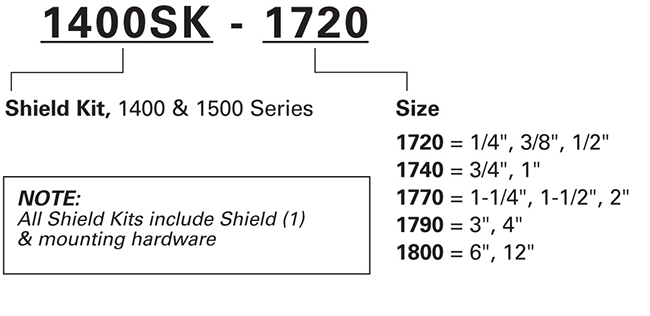

Order Guide

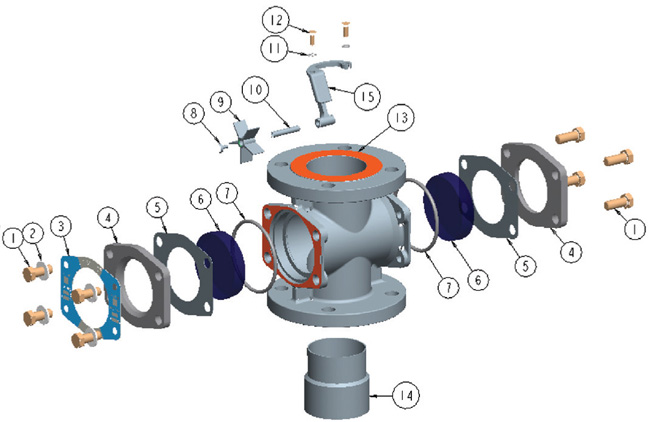

Parts Breakdown
