Fill-Line Breakaway (FLB-5000) - Heavy-Duty Truck/Bus

OPW has developed an in-line breakaway that can be used in heavy-duty truck and bus NGV refueling applications. This unit will function consistently, independent of the inlet pressure.

Features & Benefits

Durable, Corrosion-Resistant Construction - stainless steel construction provides improved durability and corrosion resistance in harsh environments.
Reconnectable Design - allows the component to be reused, reducing total cost of ownership
Innovative Valve System - the sealing system in this breakaway minimizes the amount of vent gas released during a drive-away incident.
100% Leak and Breakaway Tested, with Traceable Serial Numbers
High-Flow/Fast Fill Capacity - this is OPW’s fastest flowing breakaway. This breakaway will provide quick fueling of large vehicles. this is OPW’s fastest flowing breakaway. This breakaway will provide quick fueling of large vehicles.
Easy Installation - the in-line breakaway has SAE-10 O-ring fittings for easy installation in line between the dispenser and nozzle.
Disconnection Force - 120 lbs. (+/- 30 lbs.) (534+/- 134 N).

Ordering Specifications

Product #	Inlet Thread Size	Outlet Thread Size	Service Pressure
FLB-5000	SAE - 10, 7/8" - 14 UNF (female)	SAE - 10, 7/8" - 14 UNF (female)	3,600 psi	250 bar
CNGBREAKKIT-5000 (Includes FLB-5000 and NGVLB Breakaway)	FLB-5000 SAE - 10, 7/8" - 14 UNF (female)	FLB-5000 SAE - 10, 7/8" - 14 UNF (female)	3,600 psi	250 bar
CNGBREAKKIT-5000 (Includes FLB-5000 and NGVLB Breakaway)	NGVLB SAE - 6, 9/16" - 18 UNF	NGVLB SAE - 6, 9/16" - 18 UNF	3,600 psi	250 bar

Technical Specifications

Max Flow Rate: 7,500 SCFM @ 3,600 psid
Temperature Range: -40° F to 185° F
(-40° C to 85° C)
Weight: 2 lbs. (0.907 kg)
Cv: 3.91
MAWP: 4,532 psi (312.5Bar)

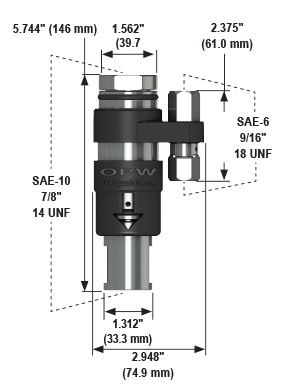

Dimensions

Catalog Page

Sales Flyer

CNG FLB Launch Flyer Brochure

CleanEnergy Product Compatibility Matrix
